Martindale - teste de Abrasão e Pilling
Sku: M008A-4
Categoria: LABORATÓRIO
Marca: UTS TESTERS
Quantidade Disponivel: 1 un
The Martindale is designed for multiple abrasion and pilling tests for various textile structures, including non-woven fabric, carpets, leather, socks, gloves, collars, cuffs, wood, high pressure laminates, painted surfaces, etc. The touch screen controller, with the most common functions accessible in one or two touches, makes this the easiest Martindale in the market to use.
4, 6, 8, 9 working positions and 2 counting Methods of count up & count down are available.
Martindale Abrasion and Pilling Tester M008A-4
Related Tags :
-
Certificate :
CE, ISO 17025
Standards
Abrasion: ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096, GB/T 21196.2, GB/T 13775
Pilling: ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525, GB/T 4802.2.
Features
• Touch screen controller with individual station counters
• Light weight motion plate and storage rack
• Multiple speeds can be used for custom tests
• 4, 6, 8, or 9 position base uses the least bench space of large martindales
• Test head choices include standard abrasion, pilling.
• Motion according to 24mm and 60mm Lissajous track.
• Alarm after test finished
Key Parameters
|
Model |
M008A-4 |
M008A-6 |
M008A-8 |
M008A-9 |
||
|
Working positions |
4 |
6 |
8 |
9 |
||
|
Counting range |
0~999999 times |
|||||
|
Test load |
Abrasion test |
Sample holder: (198 ±2)g Load for Funishings: (597±5)g |
||||
|
Sample holder: (198 ±2)g Load for Garment material: (397±5)g |
||||||
|
Pilling test |
Stainless steel load: (155 ± 1) g Stainless steel disc: (260 ± 1)g |
|||||
|
Effective friction diameter of grinding block |
A) Abrasion Holder : Φ(28.65 ± 0.05)mm |
|||||
|
B) Pilling Holder : Φ(90 ± 0.10)mm |
||||||
|
Rotational speed |
47.5±2.5r/min(20-70 r/min adjustable) |
|||||
|
Weight of loading hammer |
2.5kg±0.5kg |
|||||
|
Rubbing/pilling stroke |
60 ±0.5mm |
|||||
|
24 ±0.5mm |
||||||
|
Power supply |
1Phase AC 220V 50/60Hz 500W |
|||||
|
Dimensions(L x W x H)(cm) |
60×55×33 |
78×62×33 |
78×62×33 |
78×62×33 |
||
|
Weight(kg) |
77 |
107 |
120 |
130 |
||

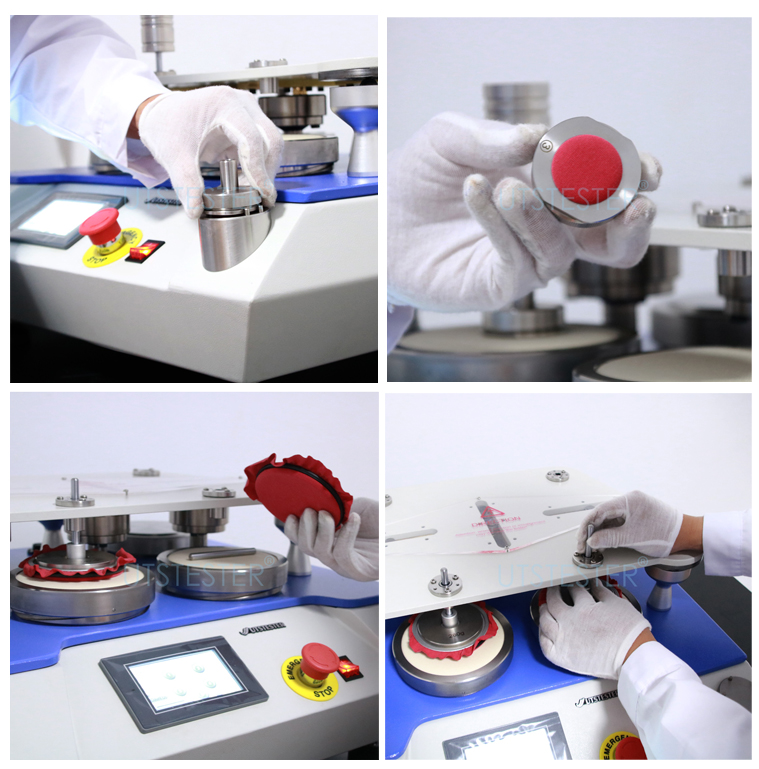

Demonstration
Materials To Be Tested
Abrasion: ISO 12947, ASTM D4966, IWS TM 112, M?S P19, Next 18, SN 198529, TWC 112, JIS L1096, GB/T 21196.2, GB/T 13775
Pilling: ISO12945-2, ASTM D4970, IWS TM 196, M?S P17, Next TM26, SN 198525, GB/T 4802.2.
Modelo: M008A-4
