Yarn Friction Meter - Medidor de Coeficiente de Atrito de Fio
Sku: Y019A
Categoria: LABORATÓRIO
Marca: UTS TESTERS
Quantidade Disponivel: 1 un
It is used to determine the friction characteristics of yarns. It is suitable for the determination of the dynamic friction coefficient of chemical fiber filaments and other materials. It can also be used for the determination of the friction coefficient of textile equipment such as leather rollers. It is necessary for evaluating the friction coefficient of filaments and textile equipment. Indispensable testing equipment.
Aparelho para leitura do coeficiente de atrito (μ), desvio padrão e coeficiente de variação (CV%).
Yarn Friction Tester Y019A
Related Tags :yarn testing machine yarn dynamic friction coefficent tester yarn testing instrument yarn abrasion tester ASTM D 3108 yarn friction tester textile lab equipment
-
Certificate :
CE, ISO 17025
Standards
ASTM D 3108, T/CNTAC 4-2017, JIS L 1095, ASTM D 3412
Features
1. The shell of the whole machine is treated with plastic spraying process, which is beautiful and easy to clean;
2. Special aluminum panel, imported meter head and stainless steel keys are sensitive to operation and not easy to damage;
3. The movement of the instrument adopts dual-motor control to be reliable and stable;
4. The movement of the instrument is equipped with imported precision bearings, which is durable;
5. The core control components use STMicroelectronics' 32-bit single-chip microcomputer to form a multi-function motherboard.
6. Color touch screen display and control, Chinese and English interface, menu operation mode
Key Parameters
|
Model |
Y019A |
Y019B |
|
Yarn testing speed |
100m／min |
200m/min |
|
Standards |
ASTM D 3108, T/CNTAC 4-2017 |
ASTM D 3108, T/CNTAC 4-2017, JIS L 1095, ASTM D 3412 |
|
Force measurement range and accuracy |
0~500CN±1％ |
|
|
Friction coefficient |
0＜u＜1 |
|
|
Friction angle adjustable range |
0 ~360 degree |
|
|
Pretension range |
0~24CN |
|
|
Display content |
Speed, friction coefficient |
|
|
Power supply |
AC 220V 50Hz 300W |
|
|
Dimension (WxDxH) |
430mm*450mm*470mm (LxWxH) |
|
|
Weight |
35kg |
|

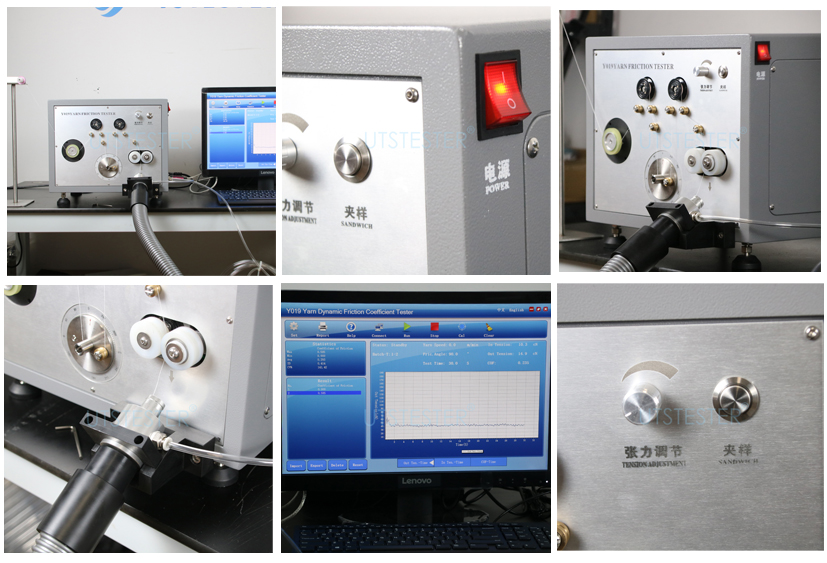

Demonstration
Materials To Be Tested
ASTM D 3108,
T/CNTAC 4-2017,
JIS L 1095,
ASTM D 3412?
código: Y019A
